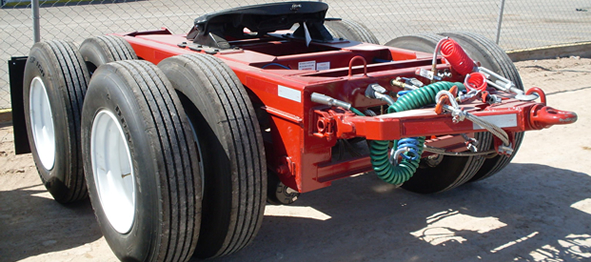

 Type A and H Dollies

Ragomex and AZTEC have merged for the Manufacture of Dollies in two versions, Type "A" and "H" for Mexican loads and ground, fulfilling the two main strengths: resistance and light weight.

ESPECIFICACIÓN
Gross vehicle weight: 72,000.00 Lbs   32,658.65 Kg
VEHICLE WEIGHT 4,500.00 Lbs   2,041.17 Kg
LOAD CAPACITY: 67,500.00 Lbs    30,617.49 Kg
DIMENSIONS: 12'  X 102''
PNEUMATIC CONNECTIONS: TREMAC QUICK ADJUSTMENT HANDS, PACKING VS. INSECTS
MAIN BEAM SUPPORT 3/8" X 5" 130 KSI - 5" X 3/16" 80 KSI
HORIZONTAL POSTS: G TYPE HIGH STRENGTH POST
SCT AND DOT BUMPER: REGULATORY FULL WIDTH
LANCE: TYPE "H" REINFORCED
TOWING HITCH: TYPE H: (2) PREMIER BRAND 80,000 LBS OR ITEC
  TYPE A: (1) MOVEABLE PREMIER OR HOLLAND BRAND
FIFTH WHEEL: HOLLAND BRAND
AIR SYSTEM:       "ABS" WABCO 2S/1M, "VTE" VALVE (EMERGING BREAKING) SEALCO
AIR SUSPENSION: HENDRICKSON 30,000 LBS, AXES OF 9/16'' 25,000 LBS
FRONT AXLE: 9/16'' 25,000 LBS AXES PROPAR MERITOR OR AMPRO
REAR AXLE: TYPE H: AXIS OF 9/16" 25,000 LBS WITH A DIRECTIONAL SYSTEM
  TYPE A: AXIS OF 9/16'' 25,000 LBS PROPAR MERITOR OR AMPRO
UNIMOUNT DRUMS: (10) BOLT HAYES LEMMERZ, HUB PILOT SYSTEM
RESERVOIR: FEDERAL MOGUL, WNC STANDARD GREASE SEMIFLUID LUBRICATION
STEEL WHEELS:  (8) of 7,660 LBS, DILL VALVE
RADIAL TIRES: GOODYEAR LOW PROFILE R-24.5
ELECTRICAL SYSTEM: TREMEC SPLIT PIN, (7) VIAS, EXCHANGEABLE, SEALED WIRING
HERMETIC ARNES:  3.0 AGAINST HUMIDITY AND DUST, CALIBRATED TO 15 AMPS
INCANDESCENT LIGHTS: REGULATORY SCT (MEX) AND DOT (USA), "LED" TRUCK LITE VS THEFT
VERTICAL PROTECTION: FOR LIGHT IN SEVERE WORK STEEL CEILING
REFLECTIVE BAND: REGULATORY 3M SCT (MEX) AND DOT (USA)
ANTICORROSIVE PROTECTION: BY IMMERSION THROUGHOUT THE ENTIRE FRAME
MUDGUARDS: A PAIR OF RUBBER
